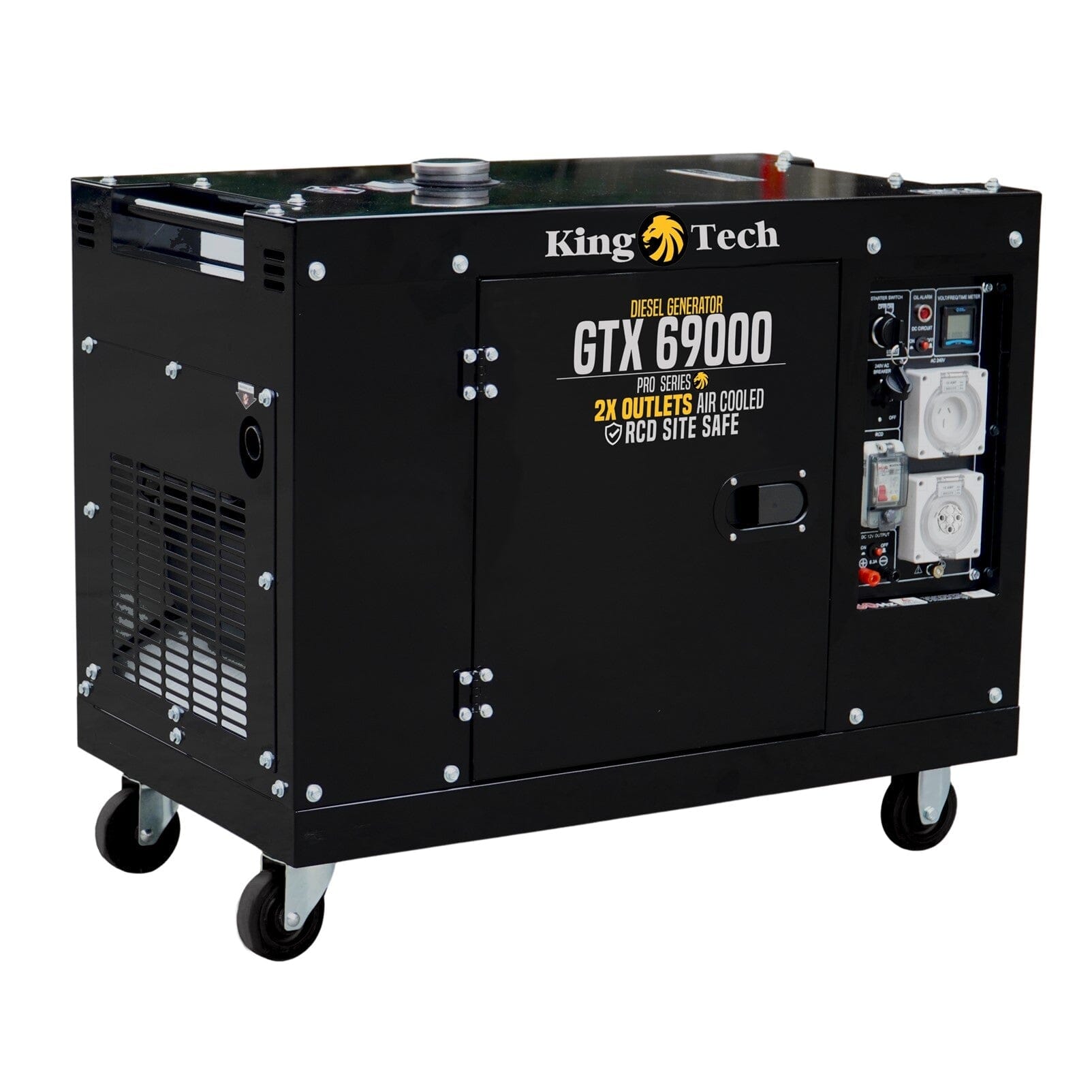

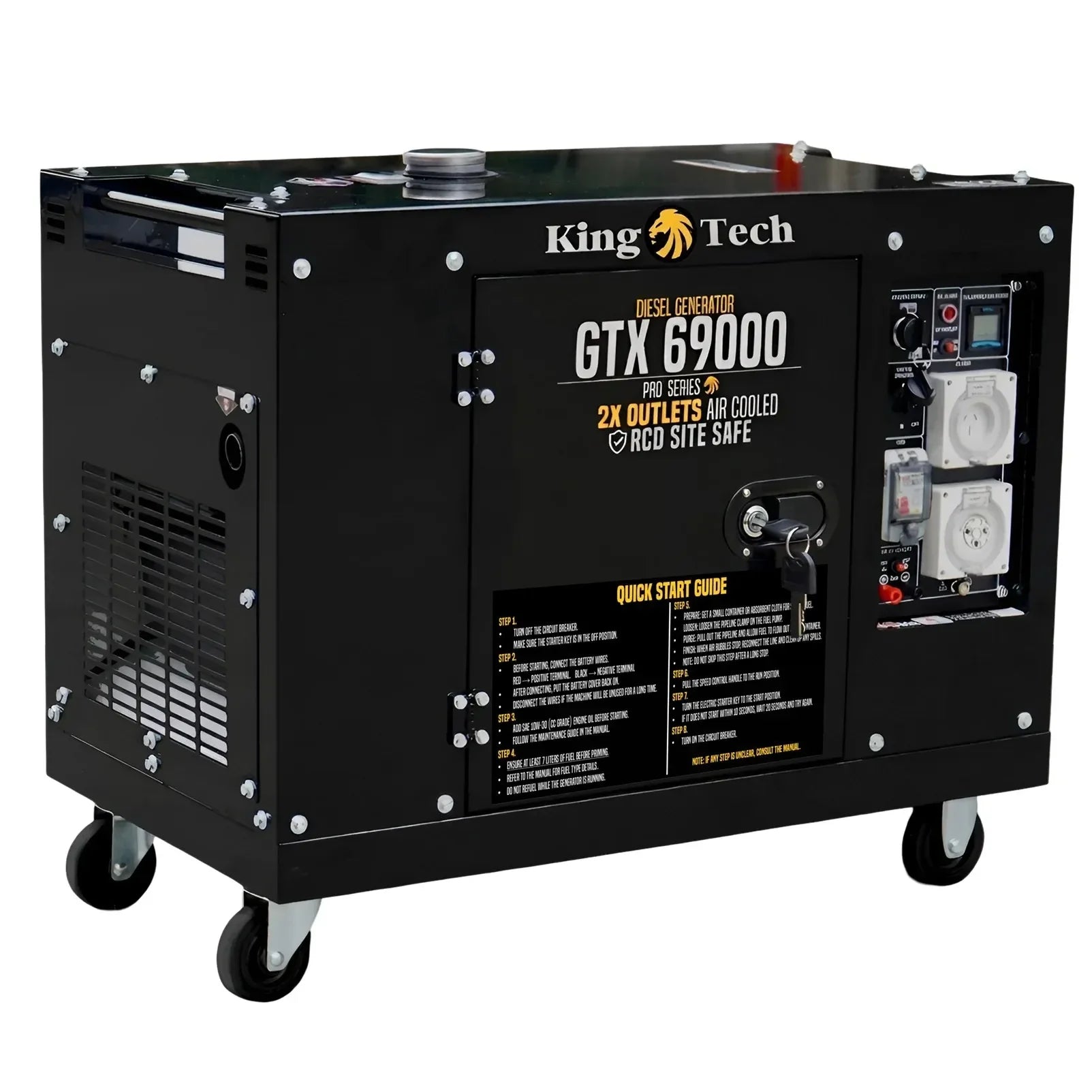

The KingTech GTX69000 Silent Diesel Generator packs serious grunt, delivering 8.4kVA of dependable power for the job site, workshop, or backup at home. Built for tradies who want performance without the racket, this portable diesel unit runs a consistent 240V / 50Hz supply from a tough single-cylinder, 4-stroke diesel engine. A super-silent enclosure, electric key start, and AVR voltage regulation make it a no-fuss workmate you can rely on. With IP66-rated outlets, an onboard RCD safety switch, and clear LCD monitoring, it’s set for real work—no gimmicks. Need it mobile? Integrated transport wheels make shifting it easy. When the lights go out or the tools need juice, this KingTech keeps you powered up.

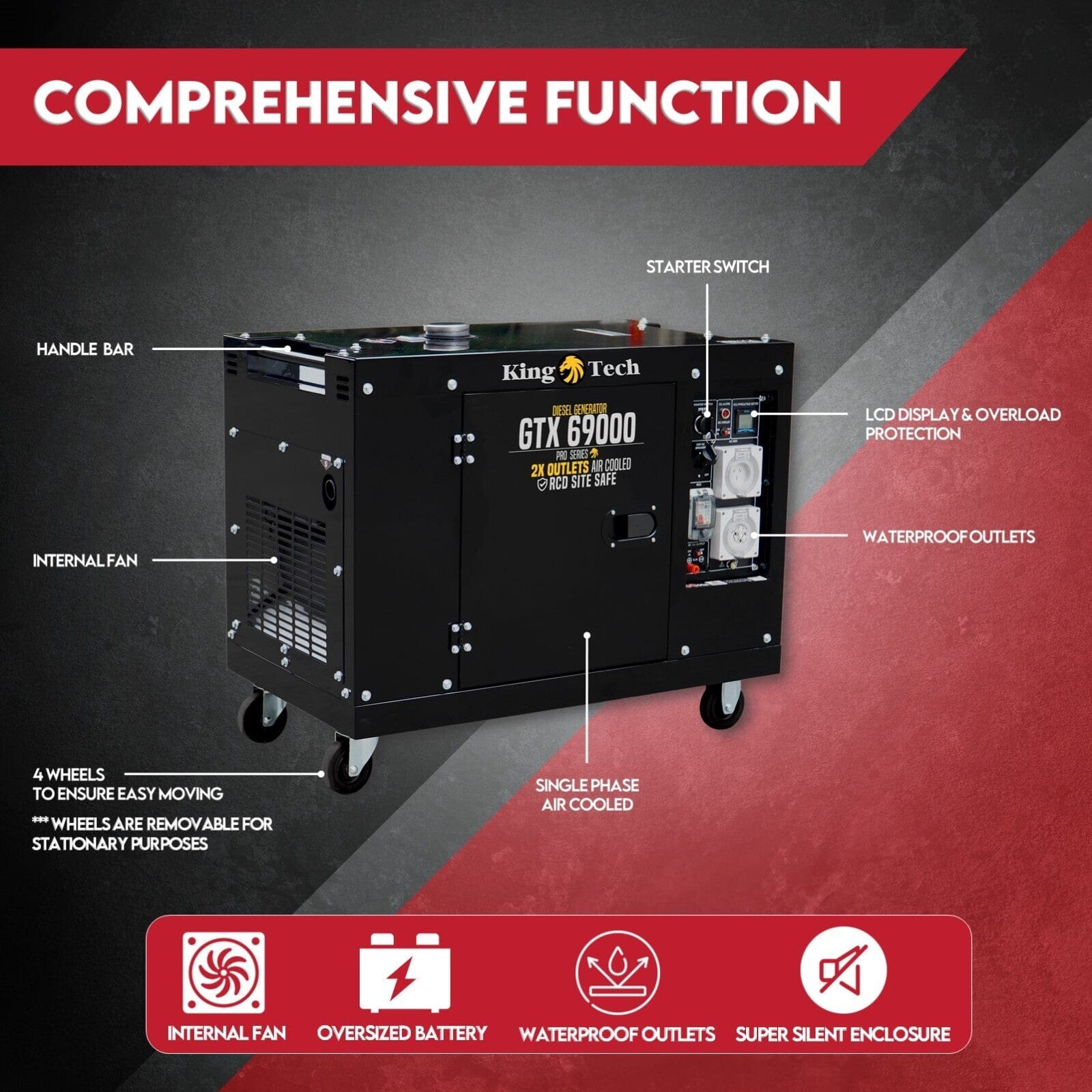

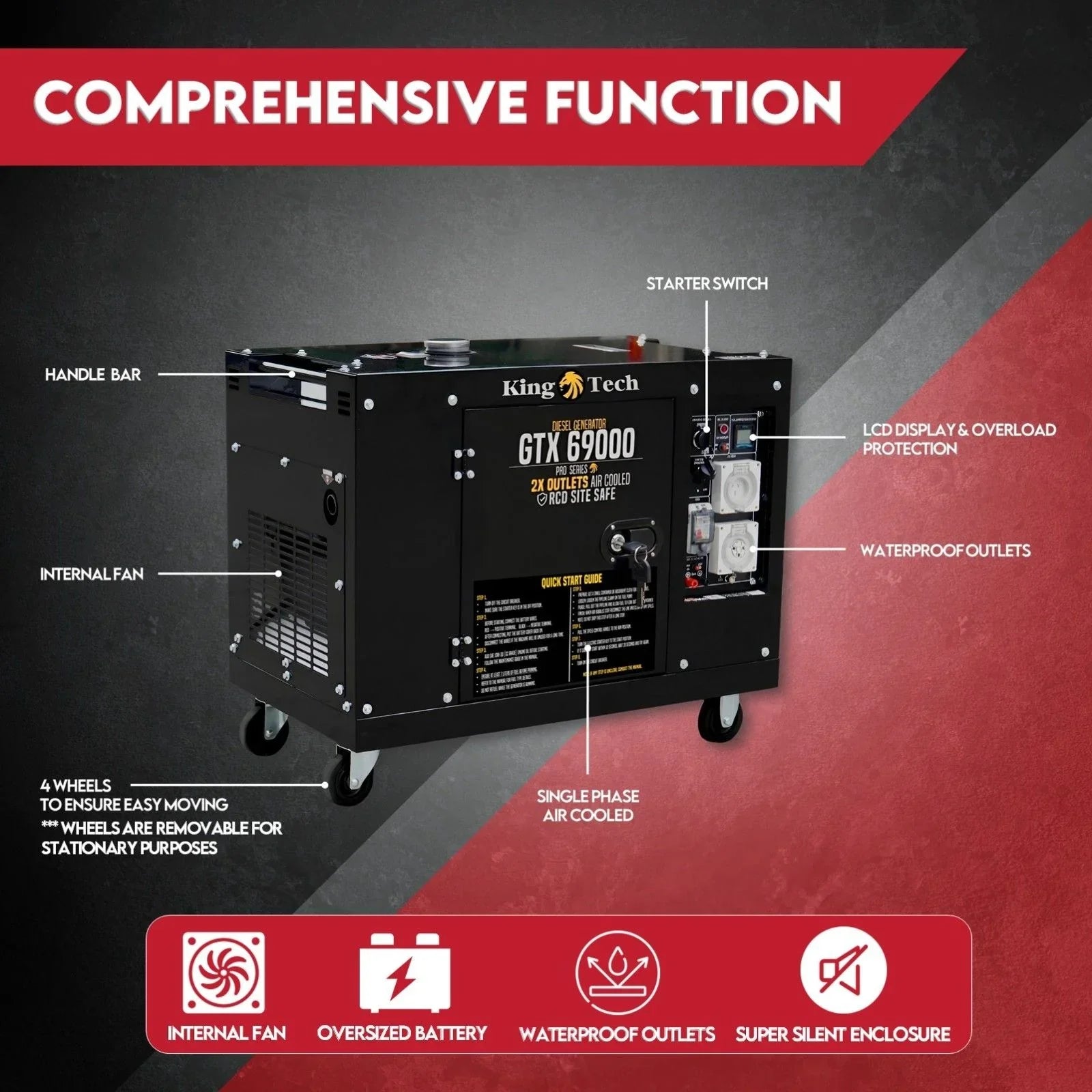

Key Features
- 8.4kVA max output with stable delivery for tools and backup loads
- Super-silent enclosure for low-noise operation on site
- Electric key start with recoil backup for easy firing up
- AVR (automatic voltage regulation) to protect your gear
- Dual IP66-rated 15A/20A 240V outlets for rugged connections
- 12V DC (8.3A) outlet for charging and auxiliaries

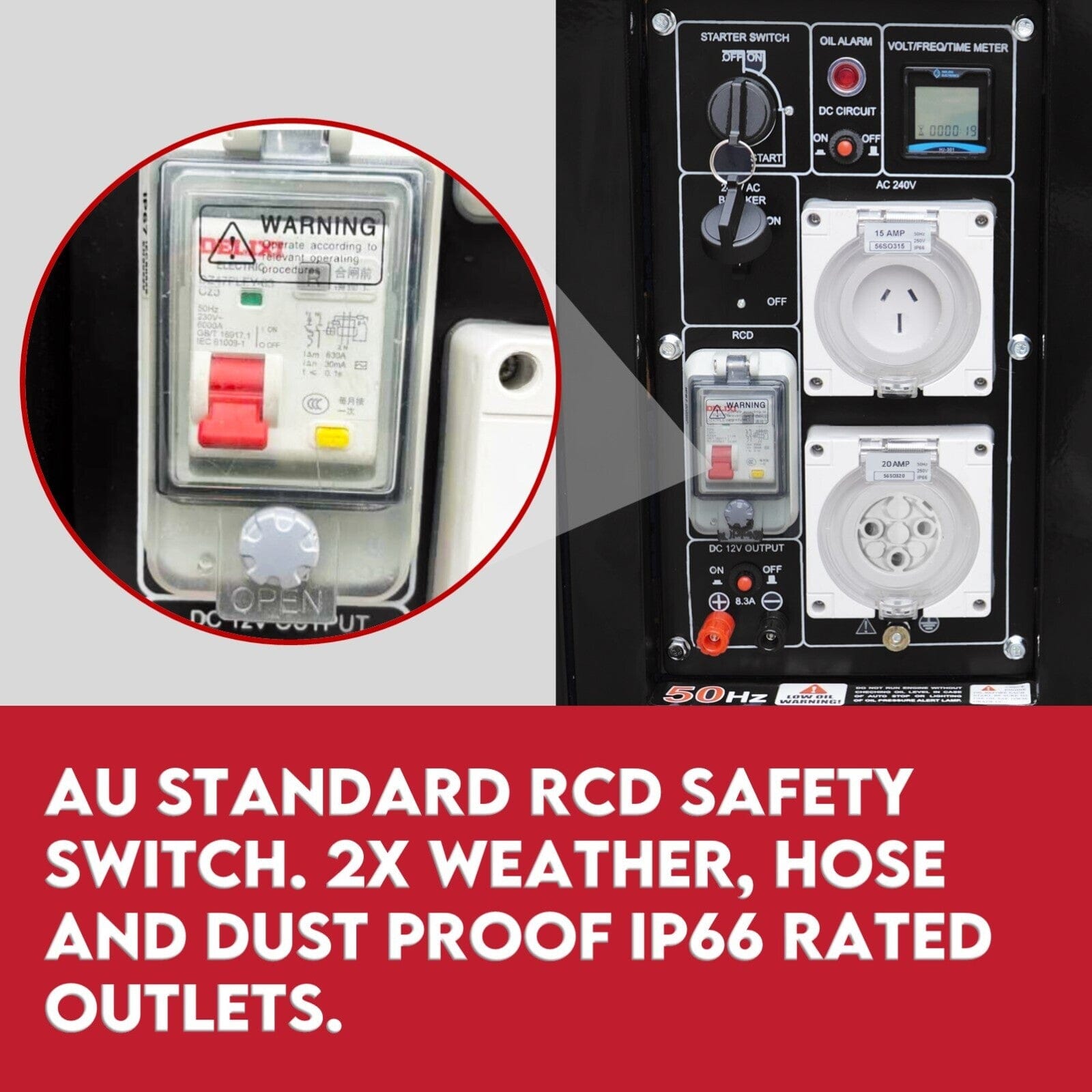

- RCD safety switch plus overload, low-oil and over-temp protection

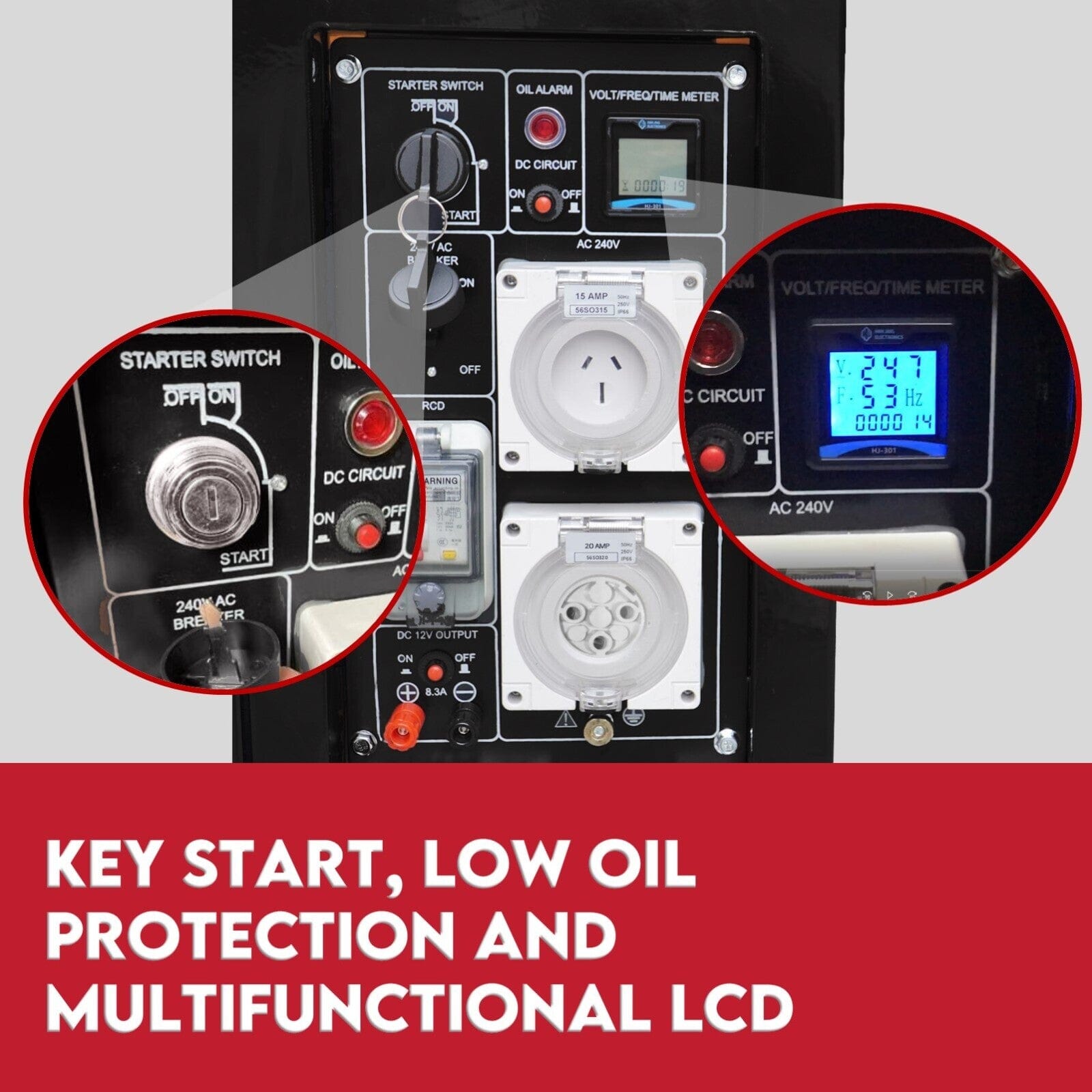

- LCD multifunction monitor for quick checks and servicing

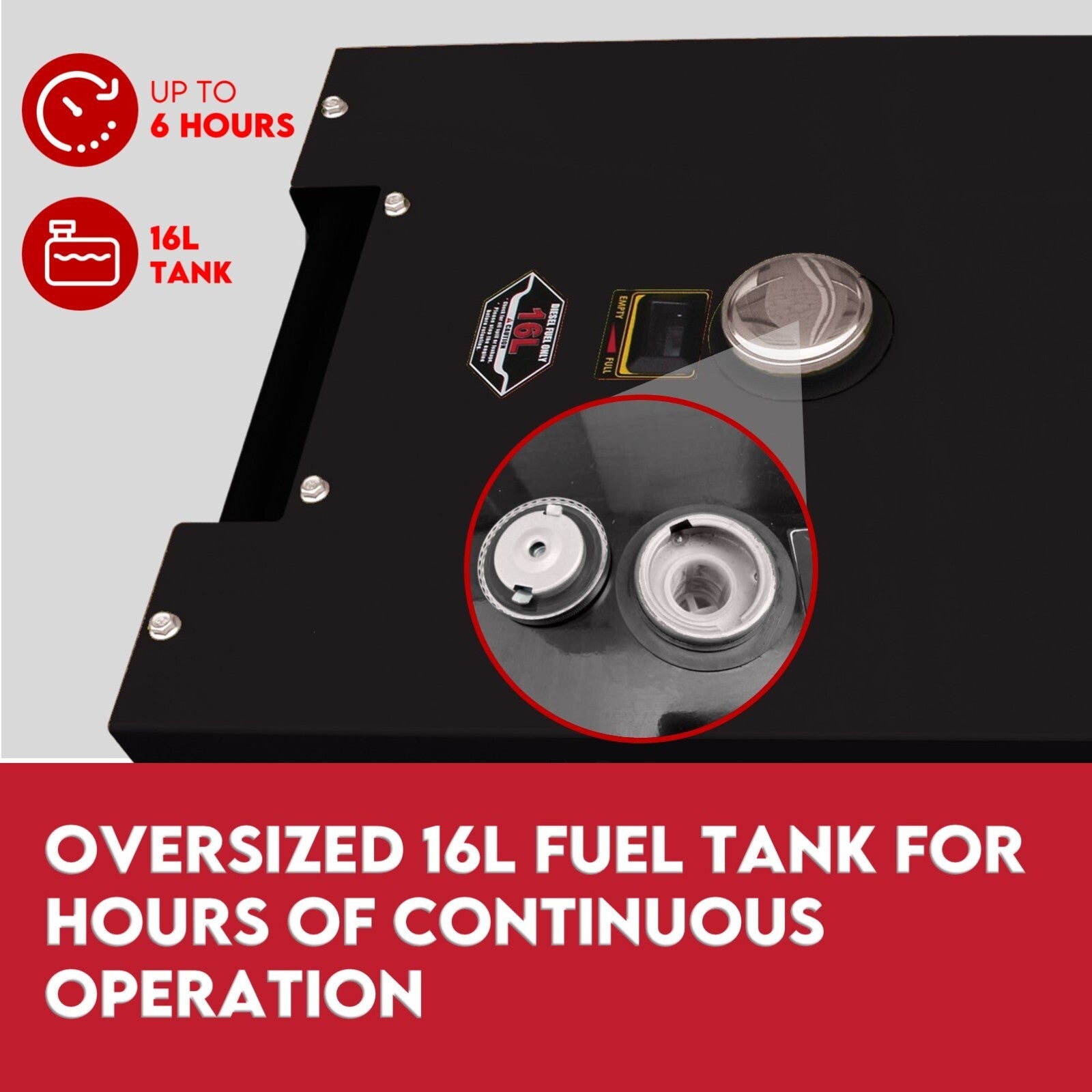

- 16L fuel tank with up to 6 hrs at 50% load
- Rated continuous operation: 4 hrs @ 100% load / 6 hrs @ 50% load
- Noise level 74 dB @ 7m to keep the neighbours happy

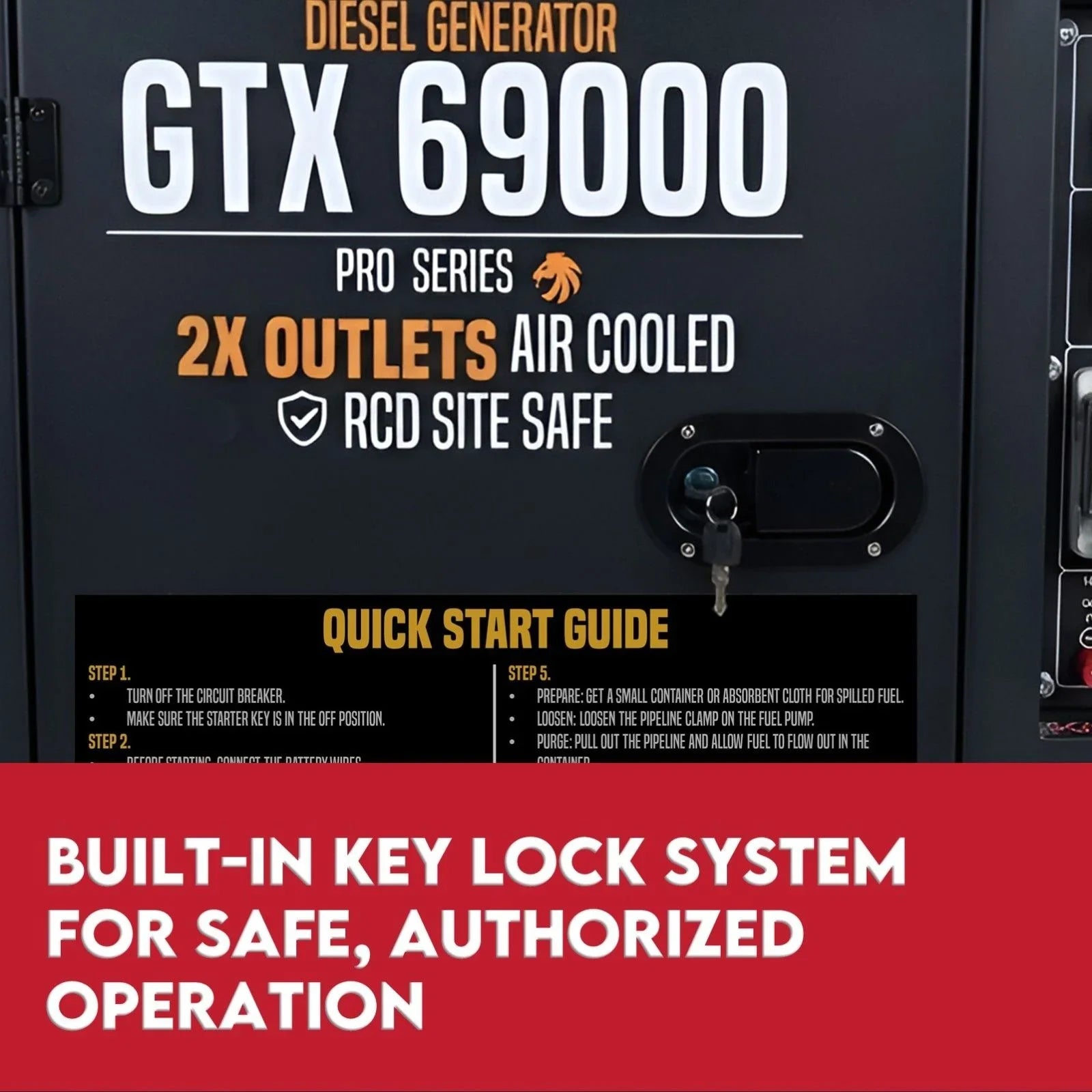

- Built-in key lock system for safe, authorized operation.
- Transport wheels fitted; removable for stationary installs

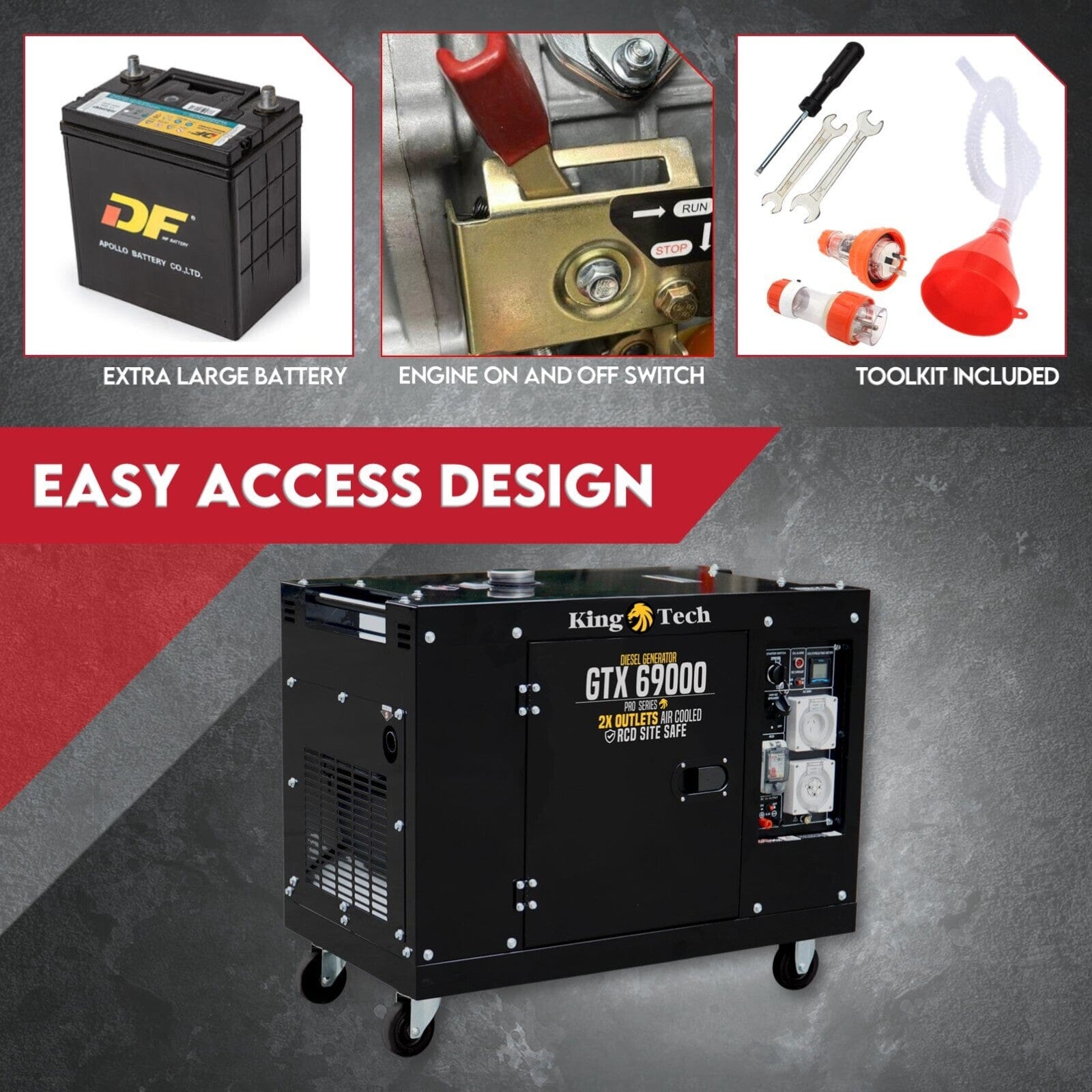

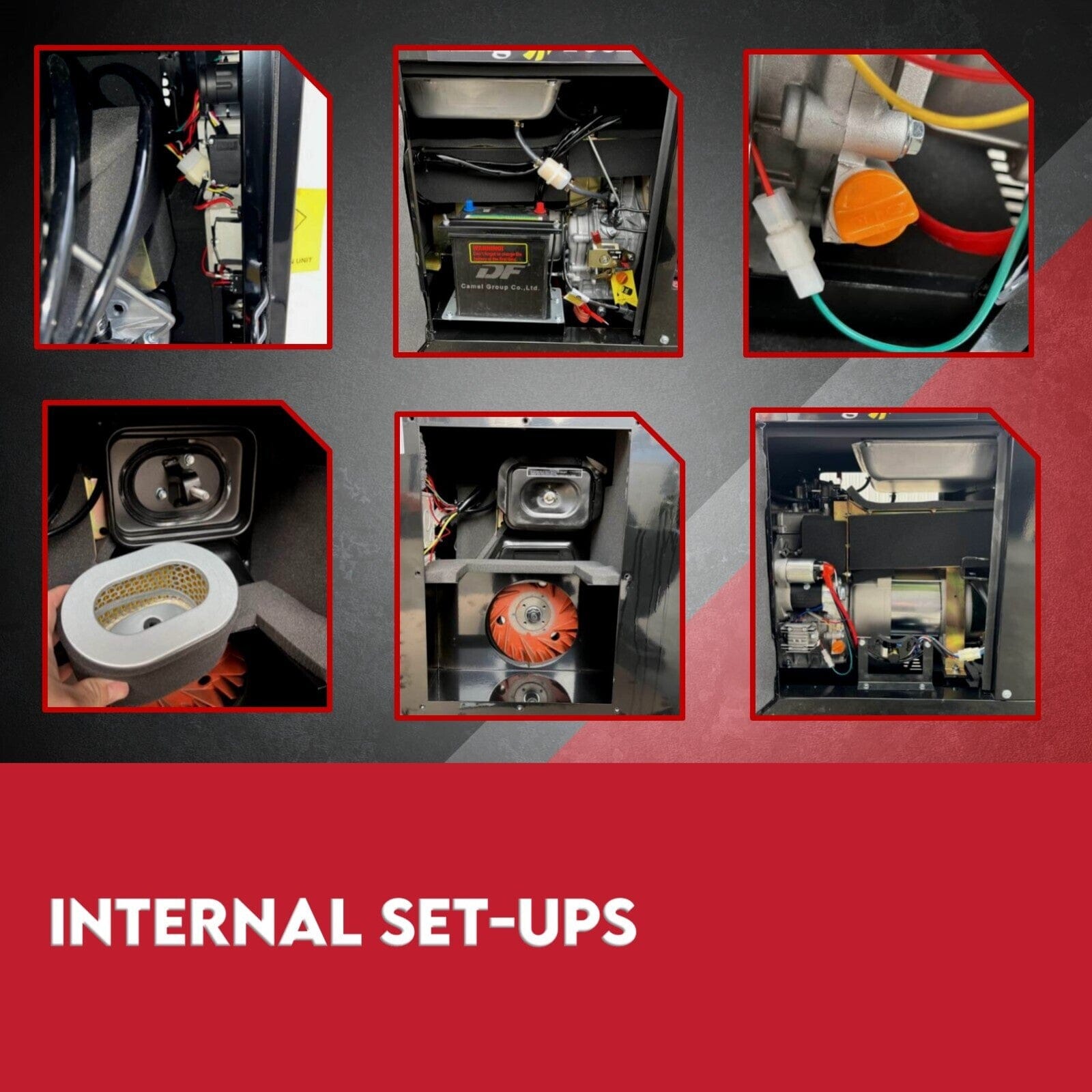

- Service-friendly layout with easy access to filters and battery
Specifications
Maximum Output: 8,400 W (8.4 kW / 8.4 kVA)
Continuous Rated Output: 6,000 W (6 kW)
AC Output: 240 V, 50 Hz
DC Output: 12 V – 8.3 A
Outlets: Dual IP66-rated 15A / 20A (240 V)
Safety: RCD safety switch; overload / low-oil / over-temp
Engine: Single-cylinder, 4-stroke, air-cooled, direct-injection diesel
Displacement: 460 cc
Engine Output: 13 hp @ 3600 rpm; compression 19:1
Fuel Tank Capacity: 16 L (diesel)
Rated Operation: 4 hrs @ 100% / 6 hrs @ 50% load
Noise Level: 74 dB @ 7 m
Battery: 36 Ah dry battery
Weight: 170 kg
Enclosure: Super-silent type; wheel kit included
Oil Capacity: 1.65 L (use non-synthetic 10W-30 / 10W-40 / 15W-30 / 15W-40 - not included)
