The Giantz Portable Welder offers professional quality MMA welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 20A and 200A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.
Features
Compact and lightweight
Free bonus carry base
IGBT inverter technology
Super stable DC inverter technology
LED display

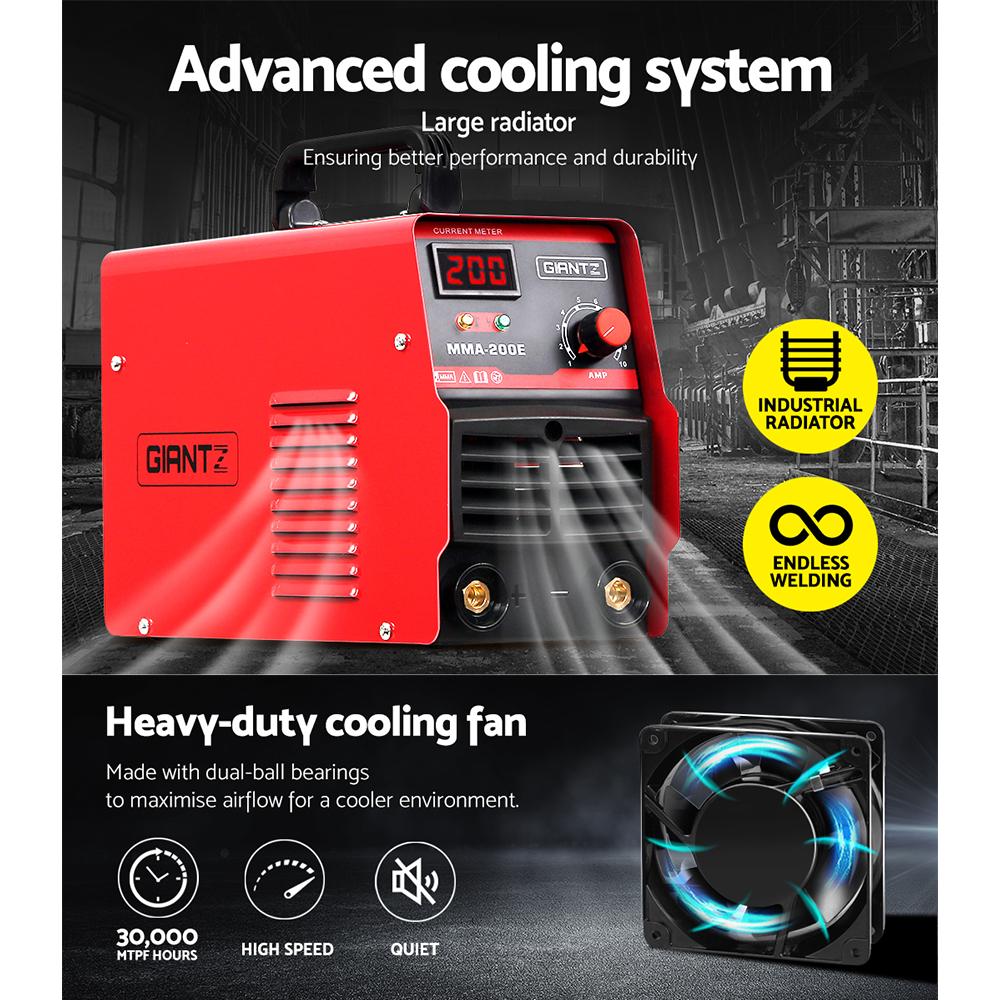

Advanced cooling system
Stable arc
Current stablisation and auto increase
Industry-standard DIN sockets
Adjustable output current range 20A to 200A
Overheating, over current, and over/under voltage protection
Works with a range of rod sizes
SAA, EMC, CE and C-Tick certified
Specifications:
Brand: Giantz
Power Voltage: Single Phase 220-240V ±15%, 50Hz
Power Plug: 15A AU Standard
Duty Cycle: 35% @ 200A
Input Air Pressure 0.45Mpa
No load power: 62W
Rate Output Voltage: 20.8 - 30V
Insulation Class: F
Efficiency: 85%
Power Factor: COS 0.93
Welding Metal Thickness: 1.5mm - 12mm
Shell Protection Grade: IP21
Pilot Arc Mode: HF
Welding Electrodes: 1.6mm – 3.2mm
Plasma Torch Length: 4m
MMA Electrode Cable Length: 1.8m
Earth Clamp Cable Length: 1.2m
TIG torch Cable Length: 4m
Power Cord Length: 1.5m
Generator Recommended: 7kVA
Dimensions: 32cm x 12.5cm x 23cm
Product Weight: 3.4kg
Output Current Range: 20 - 200 Amps

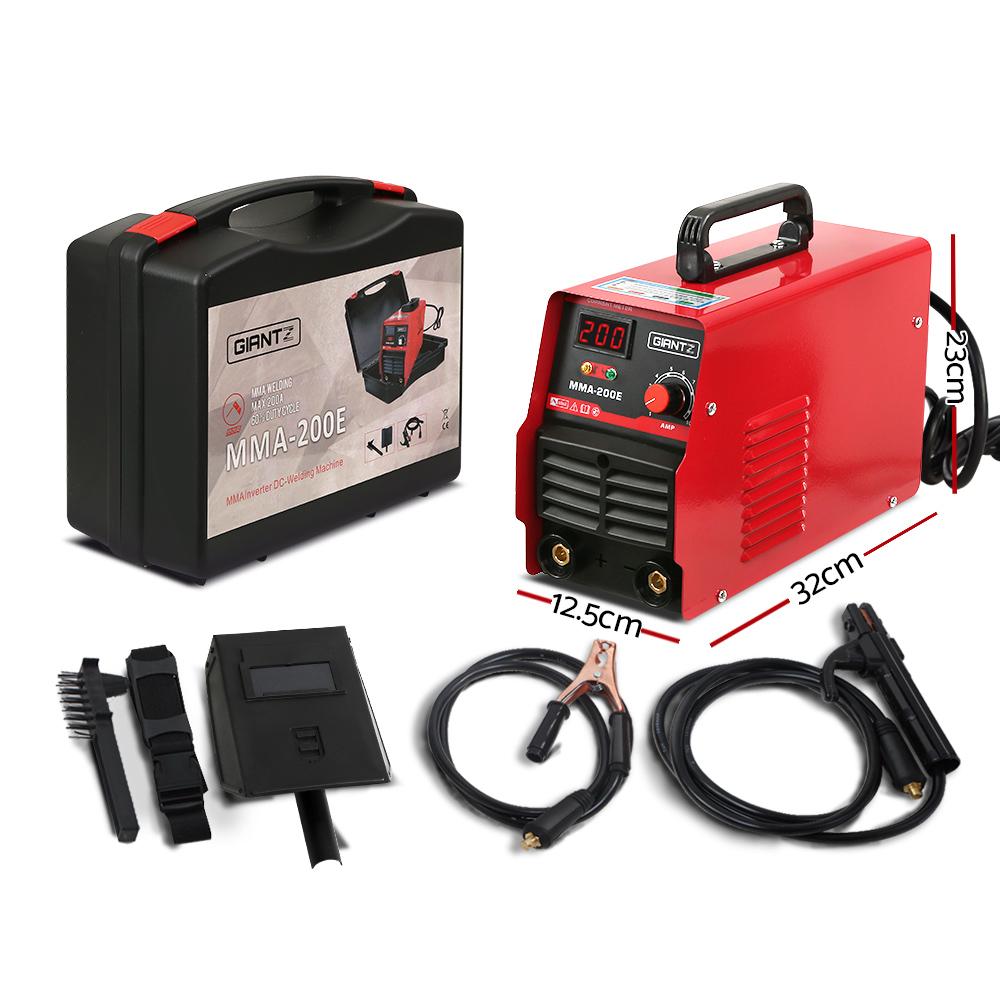

Package Content
1 x GIANTZ Inverter Welder
1 x Electrode Holder Lead
1 x Earth Clamp Lead
1 x Welding Mask
1 x Shoulder Straps
1 x Wire Brush
1 x Bonus Carry Case
1 x User Manual
