SALE
The Giantz Plasma Cutter offers professional quality plasma welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth finish. The machine delivers a high temperature plasma stream that effortlessly cuts through all electrically conductive materials such as steel, cast iron, stainless steel, copper and brass. Fact is, what you get is powerful, fast and accurate cutting with touch HF contact start function that enables the torch tip to be placed directly on the work piece throughout the cutting process. The output current is adjustable between 20A and 60A to produce flawless results with a wide range of applications including sheet metal fabrication, site work, automotive repairs and other repair and maintenance works. Plus, the advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better performance and durability. Not least, safety is never taken for granted as the plasma cutter is protected from overloading current, overheating and over/under voltage situations It also complies with current Australian standards and is SAA, EMC, CE and C-Tick certified.
Features:
Compact and lightweight
HF contact start technology
Outstanding duty cycle
Super stable arc force
IGBT inverter technology
Super stable DC inverter technology
Current stablisation and auto increase
Industry-standard DIN sockets
Adjustable output current range 20A to 60A
Outstanding 30,000 MTPF hours cooling
Overheating, over current, and over/under voltage protection
SAA, EMC, CE and C-Tick certified
Specifications:
Power Voltage: Single Phase 220-240V ±15%, 50/60Hz
Power Plug: 15A AU Standard
Output Current Range: 20A – 60A
Efficiency: 85%
Power Factor: COS 0.93
Duty Cycle: 30% @ 60A, 60% @ 40A
Cut Thickness: 1-12mm
Shell Protection Grade: IP21
Power Cord Length: 1.8m
Plasma Torch Length: 4m
Earth Clamp Cable Length: 1.2m
Generator Recommended: 7.5kVA (real power)
Net Weight 6.4kg
Dimensions: 46cm x 17cm x 30cm
Colour: Black and Red

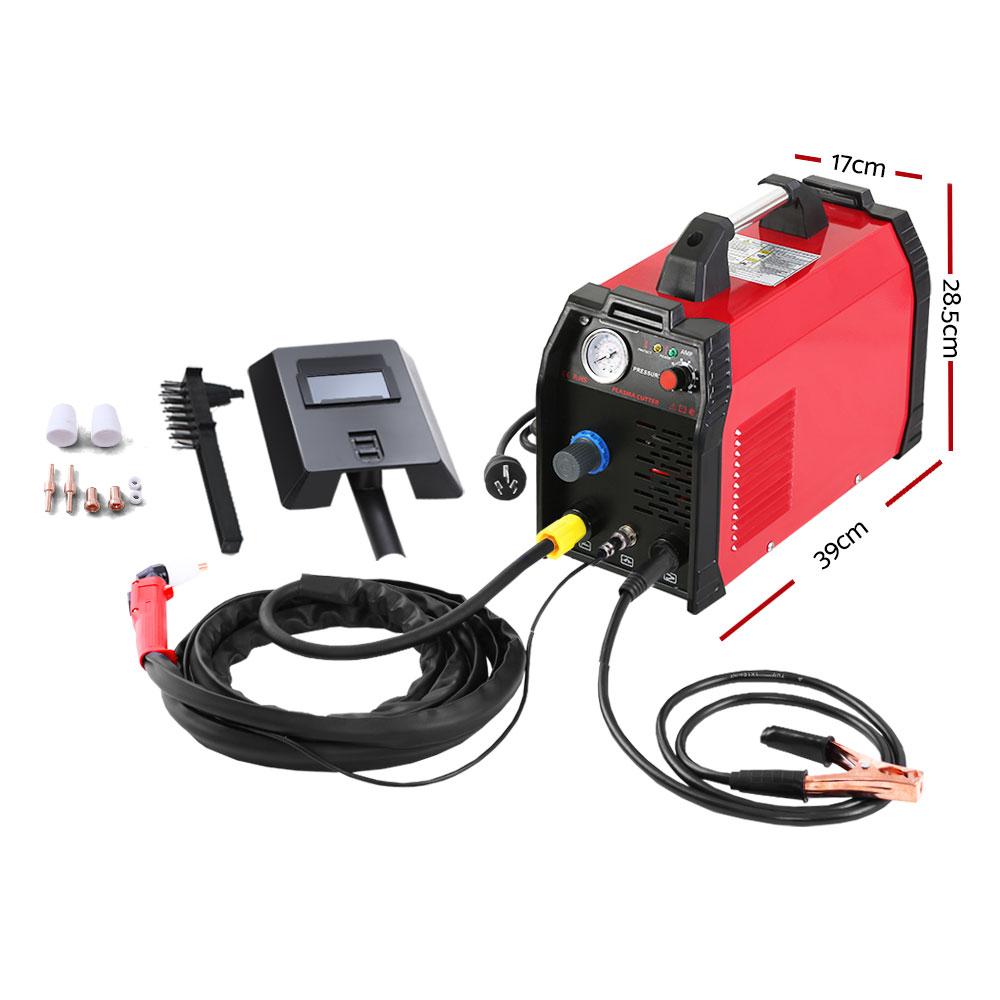

Package Contents:
1 x Giantz plasma cutter
1 x Plasma torch with accessories
1 x Earth Clamp Lead
1 x Welding Mask
1 x Wire Brush
1 x User Manual
